ImageGrid

Layouts given images.

Inputs

Images: Image (multiple) Images to layout

Output

Image Concatenated images

Parameters

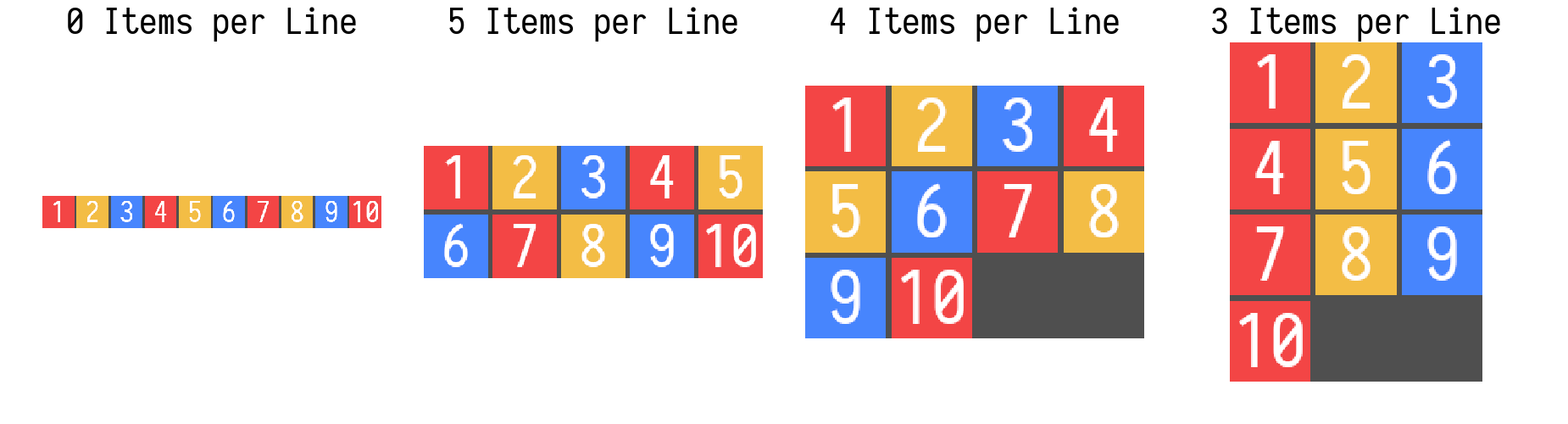

Layout Orientation:

Horizontal: concatenate images to the right of the first
Vertical: concatenate images to the bottom of the first

Padding, px:

pixel width of border, painted in Background Color

Spacing, px:

pixel width of separators, painted in Background Color

Use Custom Cell Resolution:

if set, uses Custom Cell Resolution for scaling instead of resolution of first image input

Custom Cell Resolution:

can be used for scaling instead of first input image resolution

Scaling:

Center: preserves original image scale, cropping if needed to match the cell size; the rest of the cell is filled with Background Color
Fit: adjusts image scale to fit the whole image in the cell; the rest of the cell is filled with Background Color
Span: adjusts image scale to fill the cell completely, cropping the excess
Extend: same as Span, but instead of cropping the excess extends the cell

Text:

first line will be used for the first image, second line for the second, etc

Text Alignment Horizontal:

Left: align left side of the label with the left side of the cell
Center: align center of the label with the center of the cell
Right: align right side of the label with the right side of the cell

Text Alignment Horizontal:

Top: align top side of the label with the top side of the cell
Center: align center of the label with the center of the cell
Bottom: align bottom side of the label with the bottom side of the cell

Text Padding, px:

pixel offset of the label from the correspondent cell corner

Font Color:

color of labels text

Background Color:

color of padding, spacing and free space in cells

Font:

font family used for labels

Font Size, pt:

size of labels font

Filter Method:

Nearest Neighbor: left pixels sharp
Bilinear: use weithed average of the 4 closest pixels
Bicubic: use weithed average of the 9 closest pixels

If Different Pixel Types:

Use Highest: use pixel type with bigger depth. Check how pixel types are compared in Pixel Types Comparison
Use Lowest: use pixel type with lower depth
Error: ImageGrid won’t compute if input images have different pixel types

If Different Channels Number:

Use Highest

Use Lowest

Error: ImageGrid won’t compute if input images have different channels count

Method:

OpenGL: render via OpenGL. Requires OpenGL 2.1 context
CPU: slower computing on CPU

Note

If you compute a project using WrapCmd command line interface or Node on a machine where OpenGL 2.1 is not available, the node will be computed with CPU method anyway.
